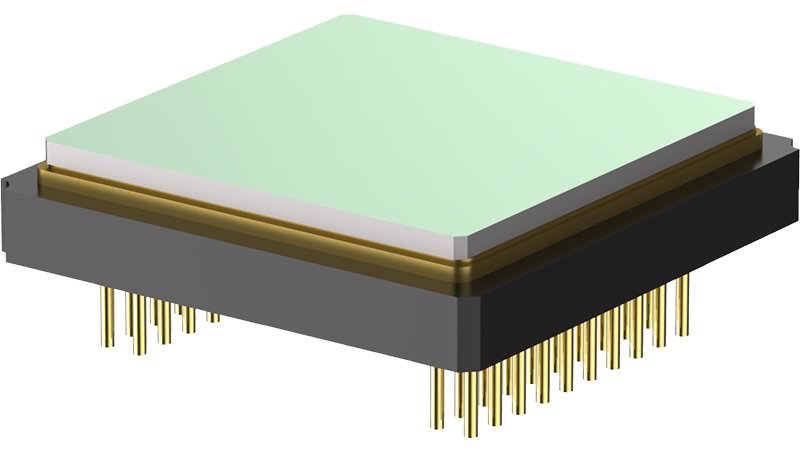

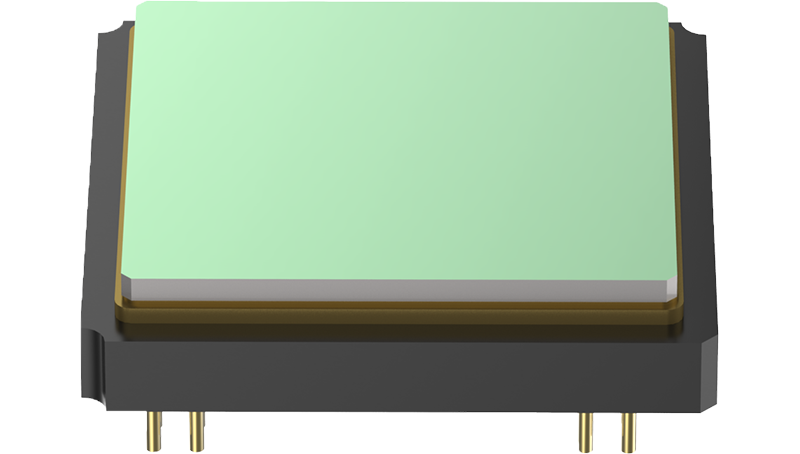

Uncooled Infrared Detector ROC312C
The ROC312C uncooled infrared detector features a resolution of 384x288 with a 12μm pixel size. It offers sensitive detection, smooth imaging, and lower power consumption. Designed with a lightweight and compact structure, this detector delivers high cost-effectiveness, meeting the infrared detection and temperature measurement needs of a wide range of users.
ROC312C
ROC312C
ROC312C
ROC312C
ROC312C
ROC312C
ROC312C
ROC312C
Applications
  • Security Monitoring
    Security Monitoring
  • Industrial Vision
    Industrial Vision
  • Personal Vision
    Personal Vision
Specifications
Specifications
Sensitive Material VOx
Package Ceramic
Resolution 384×288
Pixel Size 12μm
Spectral Response 8μm~14μm
Typical NETD ﹤35mK
Output Signal Built-in 14 bits ADC
Thermal Time Constant ﹤12ms
Max. Frame Rate 50Hz
Power Consumption ﹤140mW
Size(mm) 18.5×18.5×3.8(Without Pin)
Weight(g) ﹤4.5
Operating Temperature -40℃ ~ 85℃
